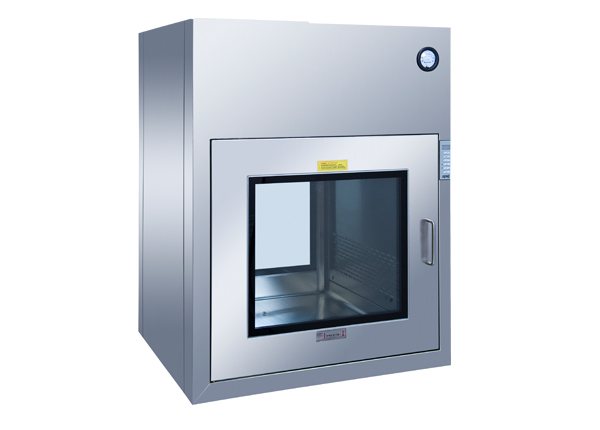

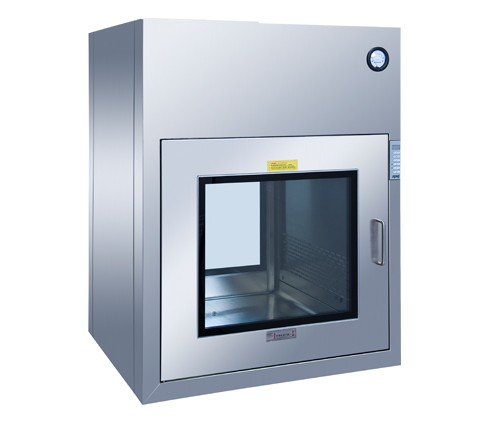

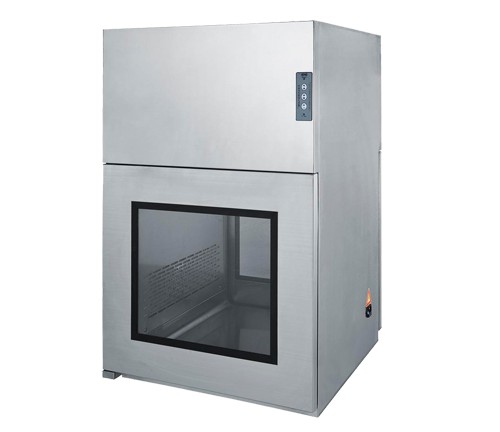

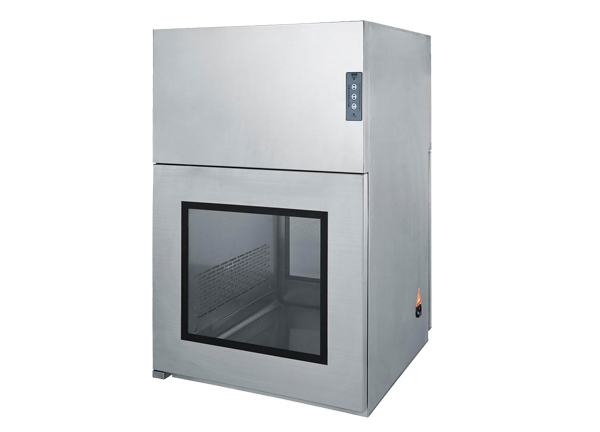

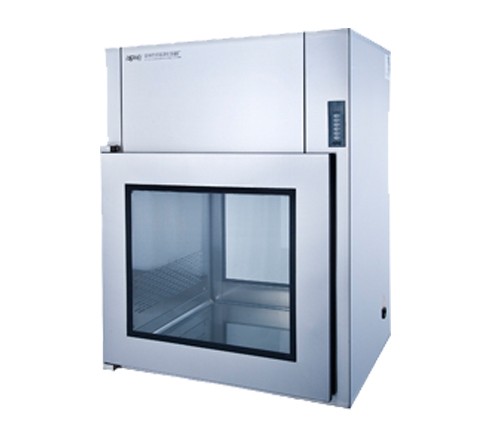

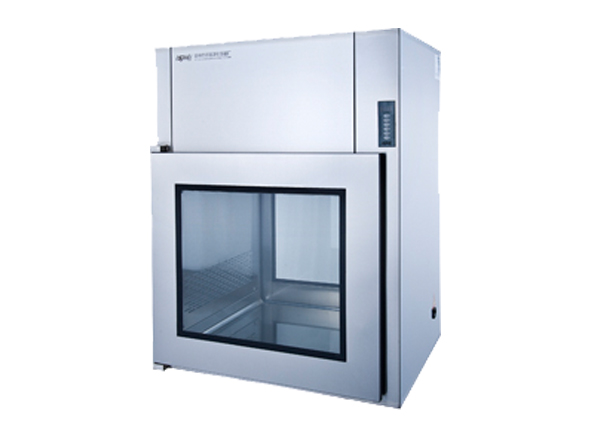

Product Description
Features:
1. SUS304 or baking finished steel plate, smooth and flush surface;
2. Top supply with H14 HEPA （99.995%~99.999%@0.3um), achieving Class 100 cleanliness;
3. Interlocking double doors to prevent from cross-contamination;
4. Dedicated sanitary silica gel sealing strip to ensure air tightness;
5. The UV sterilization light meets all GMP requirements；
6. Safe structural design, easy installation, very fit and match with cleanrooms.
Technical Specification:
| Model | SW-DPB-1 |
| Internal Dimension | 500*500*500 |
| W*D*H(mm) | 600*600*600 |
| 700*700*700 | |
| 800*800*800 | |
| 900*900*900 | |
| External Dimension | Internal Width+185/160/220； |
| W*D*H(mm) | Internal Depth+70； |
| Internal Height+400/420 | |
| Door Type | Extrusion |
| Interlocking Type | Mechanical/Electrical/Magnetic |
| Hinge | Hinge/Door Spindle |
| Power Supply | AC220V 50Hz Single-phase |
| Sterilization Light | 10W/15W |
| Cleanliness | ISO5（FS209E Class100） |
| DOP Test Port | Optional |
| Differential Pressure Gauge | Optional |
